700-1500mm Multilayer Sheet Co-Extrusion Line PET PLA PP PS Custom Color

Name: 7001500mm Multilayer Sheet CoExtrusion Line PET PLA PP PS Custom Color
Brand: MINGDI EXTRUSION
Price: 20000 USD

Brand Name : MINGDI EXTRUSION

Model Number : 52/75/85/95

Certification : CE,ISO

Place of Origin : ZheJiang,China

MOQ : one set

Price : 20000-150000$

Payment Terms : T/T

Supply Ability : 200 sets one year

Delivery Time : 60days

Packaging Details : PE film & wooden pallet packaging

Width : 700-1500mm

Capacity : 500-1400kg/h

Material : PET /PLA/PP/PS

Core component : Extrusion machine, screen changer, pressure sensor, metering pump, extrusion die, three-roll calender, drawing machine, automatic cutting system, electrical control system

Warranty period : one year

Core selling point : Multi-layer composite technology, high precision layer thickness control, stable extrusion performance

Core component shelf life : one year

Suitable industry : Agriculture, building decoration industry, electronic product packaging industry, etc

Production capacity : 1000kg/h

Linear velocity : 60m/min

Color : Customed

Contact Now

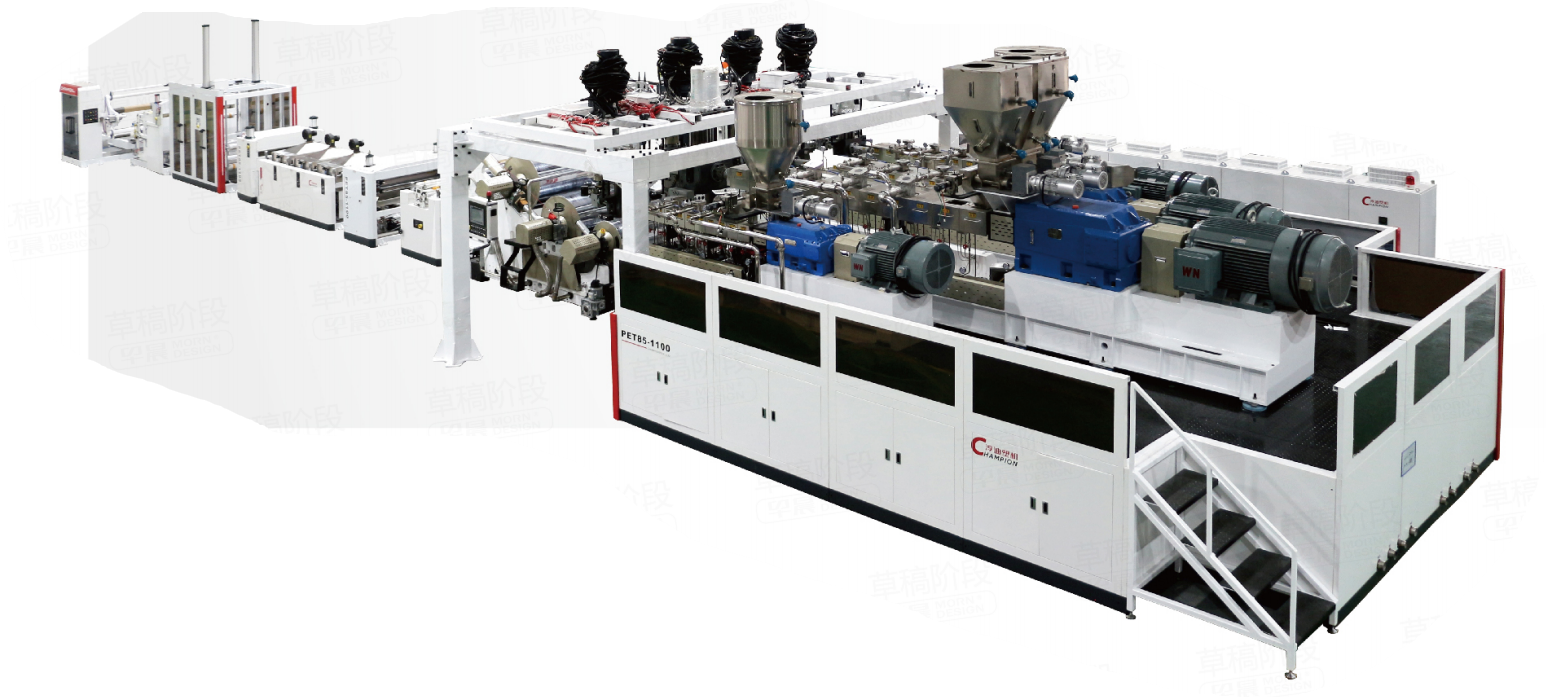

700-1500mm Multilayer Sheet Co-Extrusion Line PET PLA PP PS Custom Color

Production Characteristics

Multi-layer composite technology: to achieve the effective composite of multi-layer fabrics,

to produce sheets with excellent properties, such as high barrier, heat preservation, UV resistance, etc.

Precise control system: Equipped with Siemens PLC automatic control system to ensure accurate control and efficient operation of the production process.

High productivity: Single screw extruder design, high output, fast production speed.

Quality after-sales service: Provide comprehensive installation, commissioning,

training and technical support to ensure customers worry-free use.

700-1500mm Multilayer Sheet Co-Extrusion Line PET PLA PP PS Custom Color

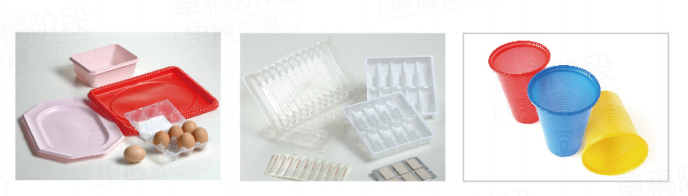

PET/PLA/PP/PS Sheet

Widely used degradable lunch boxes,ordinary lunch boxes,electronic product packaging,food packaging,printing sheets,seeding tray sheets,etc.

Core Components

700-1500mm Multilayer Sheet Co-Extrusion Line PET PLA PP PS Custom Color

Feeding form

Screw-type

Feeding capacity

1000kg/h

Control mode

Variable frequency motor speed control

Converter

SIEMENS Siemens 3KW, using Ethernet control technology

700-1500mm Multilayer Sheet Co-Extrusion Line PET PLA PP PS Custom Color

Band

Touya

Structure form

175mm,

Full-network double-column screen changer with hydraulic station

Heating zone

Two zones

Heating power

Approx.10kw

700-1500mm Multilayer Sheet Co-Extrusion Line PET PLA PP PS Custom Color

Brand

JCTIMEC

Rated speed metering

8-60r (revolutions)转/min

8-60r rpm

Model number

E90,(371CC)

Gearbox and motor power

SIEMENS Siemens reducer, 7KW servo motor

Variable conversion control

Siemens, using Ethernet control technology

700-1500mm Multilayer Sheet Co-Extrusion Line PET PLA PP PS Custom Color

Brand

JingCheng

Structure form

Hanger runner

Width of final product

860mm

Thickness of final product

0.2-1.0mm

Effective width of mold

1100mm

Single-sided outer plug

Heating zone

8zones

Heating power

30KW

Die head material

5CrNiMo

700-1500mm Multilayer Sheet Co-Extrusion Line PET PLA PP PS Custom Color

Roller size

lower roller diameter 400mm, middle and upper roller diameter 600mm

Roller width

1200mm

Roller materials

alloy steel

Roller surface roughness

mirror finish

Hardness

≥HRC60-62

Chrome layer thickness

0.08mm-0.12mm

Drive motor

SIEMENS Siemens servo motor, 3 sets*7KW

Linear velocity

6-60米

Reduction gear

SIEMENS Siemens Gearbox, 3 sets

Form

L-type

Forward and backward movement power

0.75KW

Front and rear lifting power

0.9KW

roller gap adjustment

Adopting hydraulic cylinder to adjust the distance, worm gear elevator micro-adjustment limit, with mechanical insurance, with micro-adjustment and percentage meter device, with hydraulic station, the highest pressure 15Mpa, with self-locking pressure preservation function

three-roller bearing

NSK

Nippon Seiko Kabushiki Kaisha)

water intake structure

Left inlet and right outlet water mode

700-1500mm Multilayer Sheet Co-Extrusion Line PET PLA PP PS Custom Color

Edge triming assembly

1 group, 3 knives, 1 group of left, middle and right, adjustable distance

Cutter form

rotary cutter

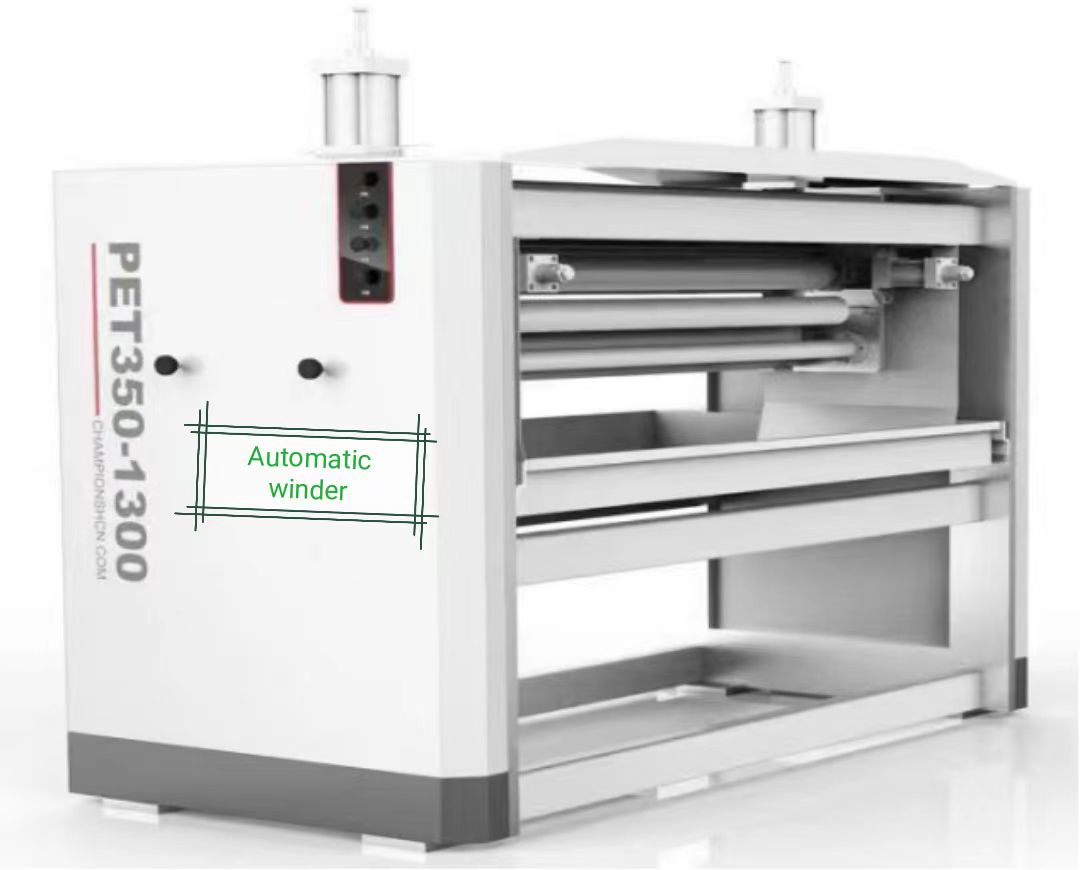

Ferrules winding

a set

Ferrules winding drive

0.4KW servo-motor control

700-1500mm Multilayer Sheet Co-Extrusion Line PET PLA PP PS Custom Color

Size

Ф200mm*1200mm

Haul-off roller

Upper rubber rollers and lower steel rods, rubber rollers cover layer thickness 20mm, nitrile rubber, surface Shore hardness 65-70°

Drive motors

SIEMENS servo motor, 5KW

Roll cylinder opening and closing

Cylinder adjustment

Wait controllers

Using Ethernet technology control
